GH-HC650B/850B/1000B 雙層八線底封制袋機
技術參數
TECHNICAL PARAMETER
雙層八線底封制袋機主要技術參數：
|
型號 |
Model |
GH-HC650B |
GH-HC850B |
GH-HC1000B |
| 最大制袋寬度 | Max. Bag Making Width | 220x8mm | 320x8mm | 420x8mm |
| 最大制袋長度 | Max. Bag Making Length | 1000mm | 1000mm | 1000mm |
| 產品厚度 | Thickness | 0.009-0.1mm | 0.009-0.1mm | 0.009-0.1mm |
| 生產速度 | Speed | 5-100pcs/min | 5-100pcs/min | 5-100pcs/min |
| 主機功率 | Main Motor Power | 1.5KW | 1.5KW | 1.5KW |
| 總功率 | Total Power | 7.5KW | 8.5KW | 9.5KW |
| 機械重量 | Weight of Machine | 1100KG | 1300KG | 1600KG |
| 外形尺寸 | Dimensions | 5000x1500x2000mm | 5000x1700x2000mm | 5000x1800x2000mm |

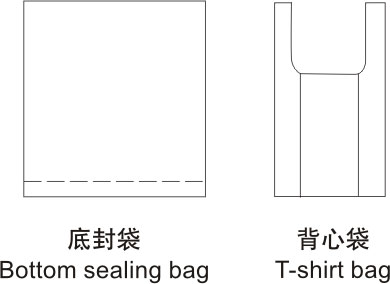

產品樣品
PRODUCT GENERALIZATIONS
